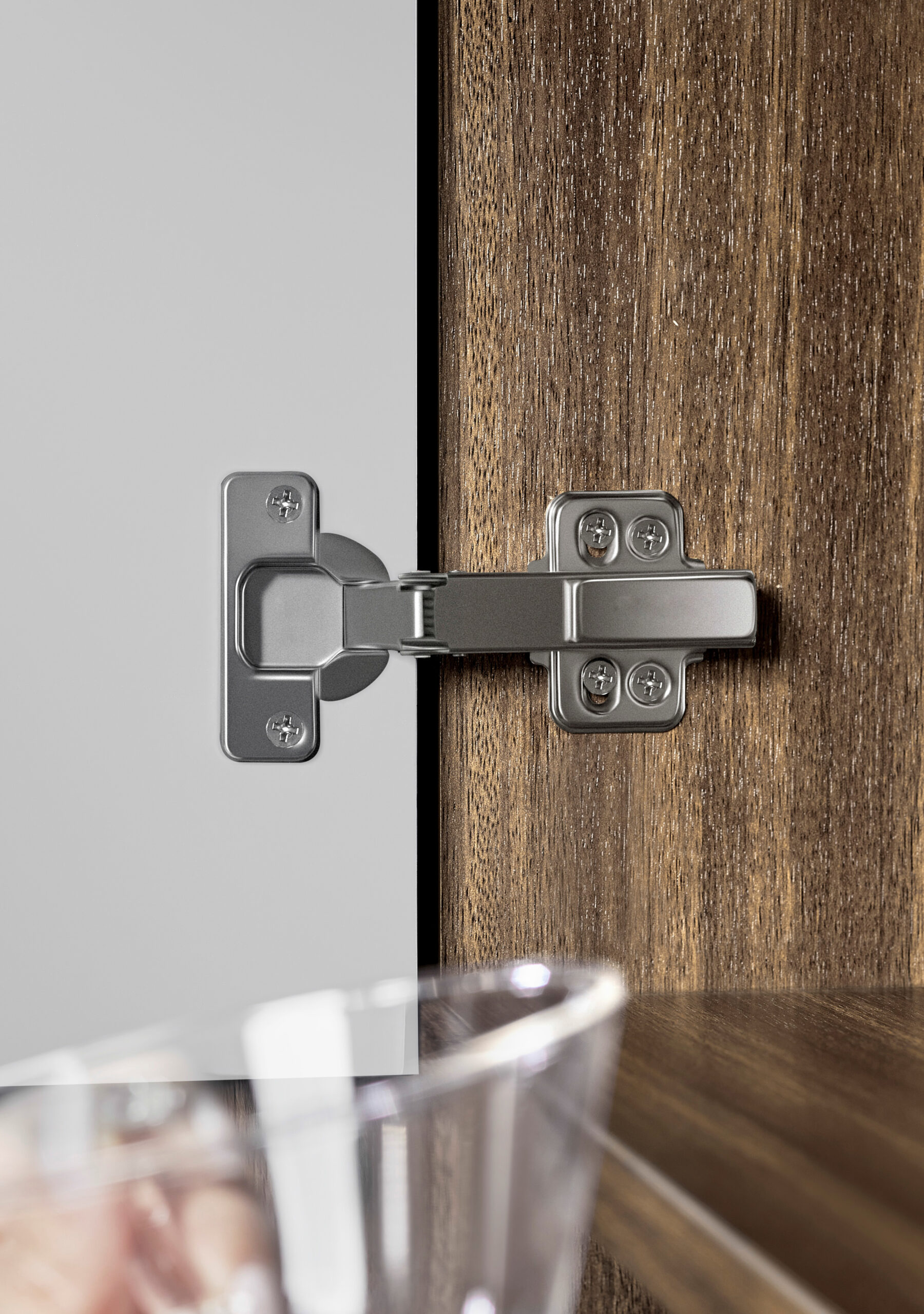

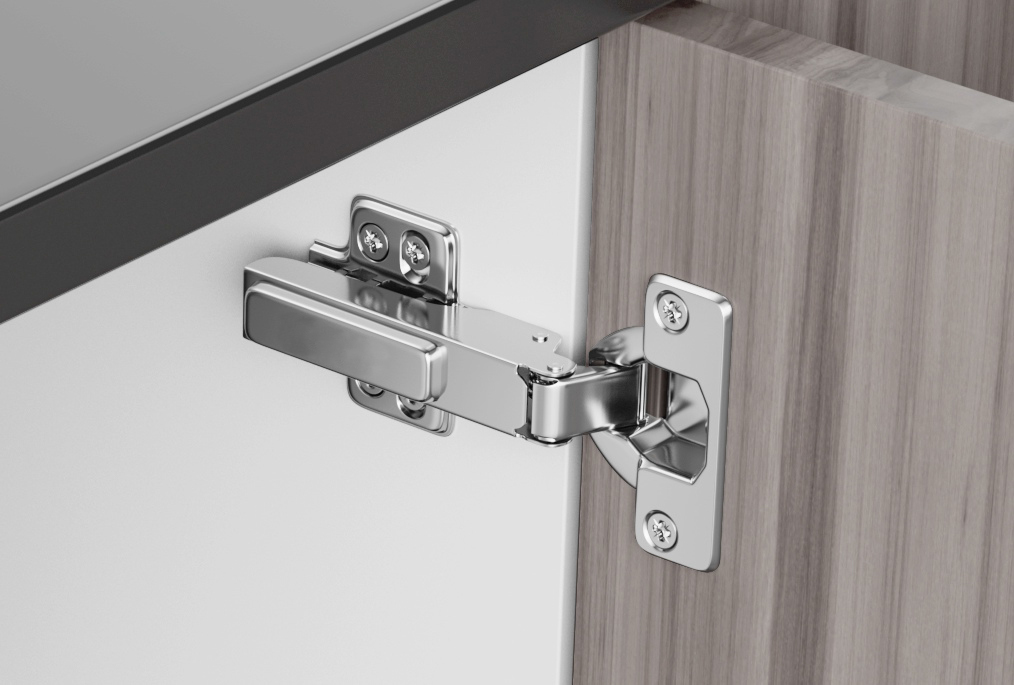

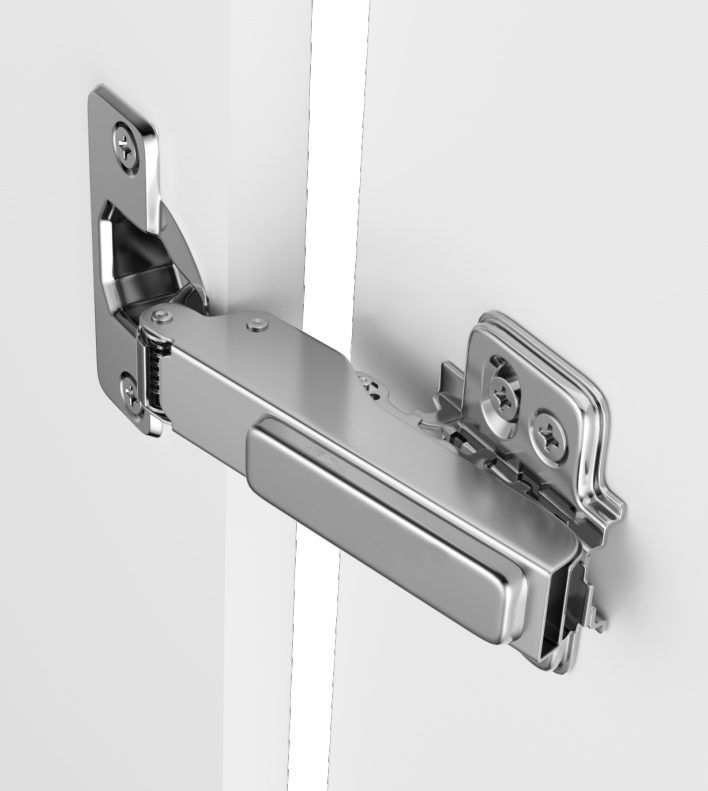

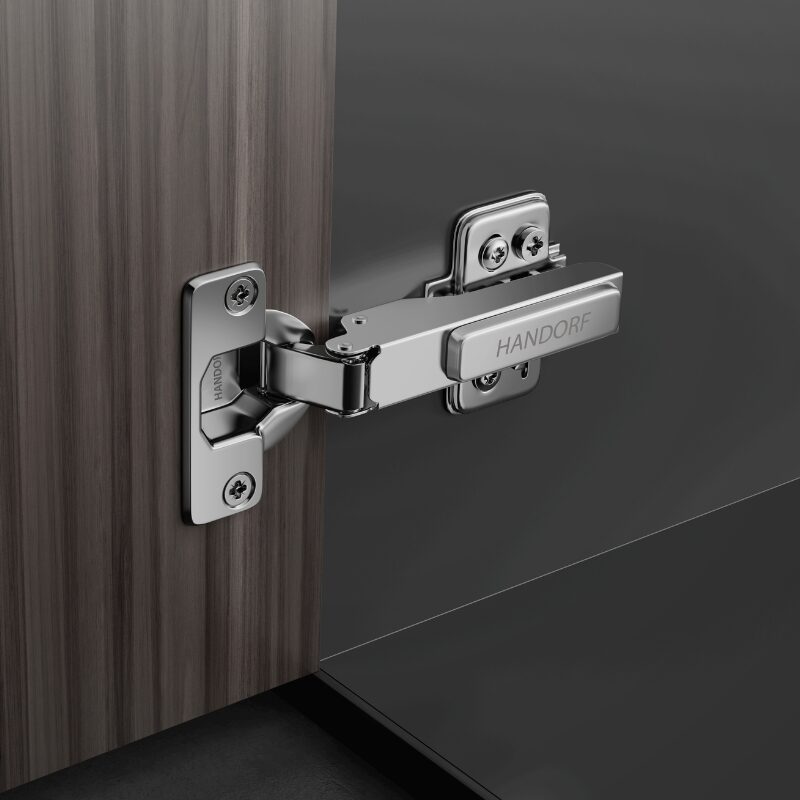

Anyway Snap-On Soft Close Hinge
Specifications
Opening angle – 105°
Hinge cup diameter – 35 mm
Hinge cup depth – 11.5 mm
Range of door thickness – Up to 26 mm
Prefixed screws
Includes arm cap
Includes cup cap
Compatible with slim plate and broad plate
Features
Anyway Snap-On Soft Close Hinge
Snap-on mounting system

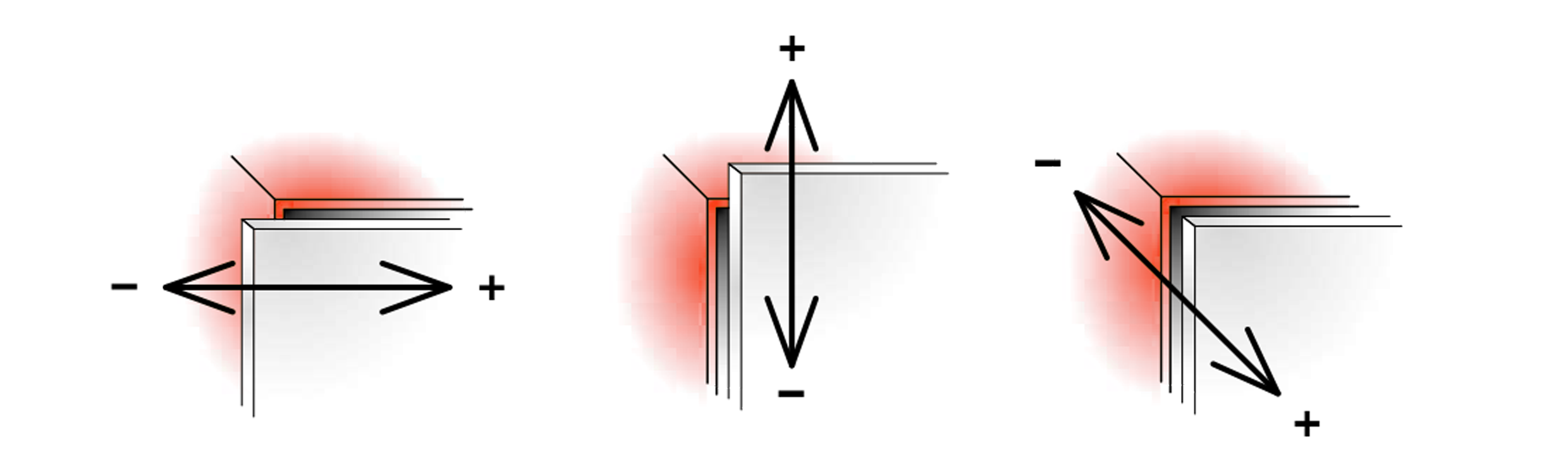

3-way adjustment (3D)
Available with slim plate and broad plate
Smooth and silent soft-close mechanism
Model
HH-151 – Full Overlay (0°)
HH-152 – Half Overlay (8°)
HH-153 – Inset (15°)
Download Sheet
